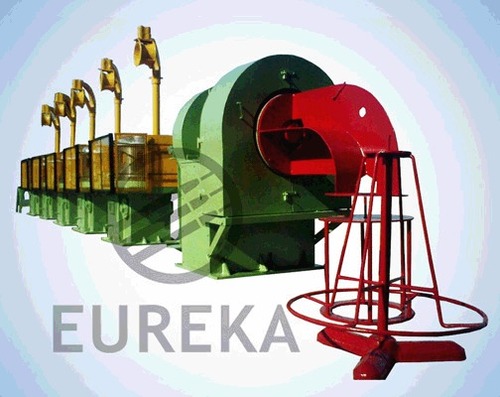

Wire Drawing Machine

Wire Drawing Machine
Wire Drawing Machine
Product Code : 28
Brand Name : Eureka
Product Description

Wire drawing machine cater astounding drawing operation for low, high and medium wires of stainless steels, special alloy steel, carbon steel and non-ferrous alloy steel. Between the drum and next die, there is a sensor roller from which the wire passes through. The rollers consist sensors to determine the place of the arm and retain tension of the cable by controlling the pace of drums. These drums are disposed to the upright axis to result fill on them. Fundamentally, it is suitable for thick cables.

Attributes of the machine;

  • Machines are fabricated on modular erection, in union of blocks, which eliminates the requirement of any other foundation.
  • Twist-free function provides high drawing pace, which eventually yields better performance.
  • Faster threading and easy operation.
  • Low downtime because of less number of wear components, that provide high degree of reliability.
  • Enhanced dust shielding provides better surroundings conditions.
  • Great pliability and less current usage due to advanced AC operate technology and best energy transmission system.
  • PLC Built regulation with profibus digital transmission and flawed diagnostic system.
  • Block size varies between 250mm to 1200mm.
  • Topmost speed of the machine is up to 30m/sec.
  • Constructed mixed steel drawing blocks hardened till 62Hrc to create it very resistant against wear and for longer time period.
  • Former slab as overhead take off (OTO) accompanied by VFN arm.
  • Exceptional slab chilling by limited gap cooling method with self cleansing procedure.
  • Drawing slabs are covered with corrosion preventive from inner part.
  • Usage of pneumatic circular brakes at top speed and highly productive gearbox.
  • Incorporated features of quick stop, normal stop and emergency stop. Instant ramp-down and ramp-up time.
  • Automation and motors goods like PLC, electric panel, drives and HMI are some of the modern technology across the world's reputed brands.
  • As compared to other brands it required less energy due to sophisticated drive technology and effective energy kinematics.
  • Machinist affable interface for ever machine function.
  • Due to mild maintenance of cable at the time of drawing activity, it yields better quality of wire.
  • Simple troubleshooting, low shaking at top speed, no torsion, easy maintenance, low noise and low wire derivation.

With our access to innovative technology, our company is engaged in manufacturing, supplying and exporting Wire Drawing Machine. This machine is manufactured utilizing highly qualitative components with the assistance of our well-trained employees. We conduct variegated quality tests on this machine in order to ensure flawlessness. Under the supervision of our logistics personnel, we timely deliver this machine at the destinations of our patrons. Offered Wire Drawing Machine is highly demanded across the globe owing to its below mentioned salient features:

Technical Details:

  • Capstan : 550, 450, 400, 350 mm
  • Inlet size : 5.5 to 1.6 mm
  • Finish Size : 4 to 0.6 mm
  • Final Speed : 300 - 900 meters/min.
  • Drive : State of the Art A.C. Frequency Converter Variable Speed Control.
