Wire Straightening Machine

Wire Straightening Machine
Wire Straightening Machine
Product Code : 02
Product Description

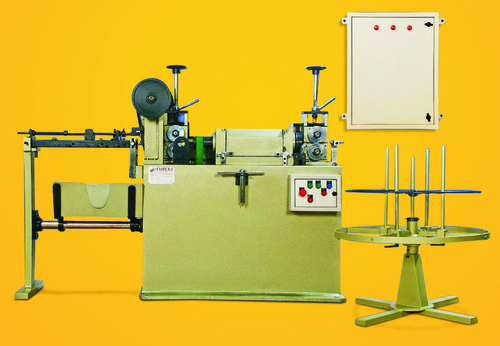

Wire Straightening Machine

Wire Straightening Machine is firmly developed to offer the requirement of thin cable aligning and cutting 1.5 mm to 4mm gentle as well as untainted steel, brass, aluminium and copper wire. This machine is compact yet meets the performance and quality with global demands, which is the reason it is widely appraised in the wire sector. It is majorly utilized to cut and align wire to create cut length rods from coils. Besides, it is also processed in rods and where precise alignment of coiled cable with fine cut is required, high outputs and precision are significant.

The machines embodies of uncurling circles out of which only restricted numbers are strengthened. It has enough power to foist the load on the steel rod by revolving handle. As an outcome, inner pressure gets removed meanwhile the steel bar is aligned. A definite power motor formed force unit will be suitable with constant lifting and landing.

WIRE STRAIGHTENING MACHINE'S FEATURES:

  • Feeding speed is quiet fast
  • Top speed revolving whirler for attaining precised straight wire.
  • Sturdy Design
  • Low noise and attractive appearance
  • Less maintenance required along with high productivity.
  • Easy to change and adjust, Cutting equipment is a plain fabrication.
  • Particularly constructed half disc-shaped uncoiling dies to aid even coil alignment.
  • Dies can be easily and quickly adjusted in spinner.
  • Less power required.

Setting a benchmark in this domain, we are engaged in manufacturing and exporting Wire Straightening Machine. Precisely engineered in accordance with industrial standards, these machines are widely used for straightening wires. Well-known among our clients due to their corrosion resistance, easy installation and outstanding performance, these machines are highly demanded by diverse industries. Along with this, Wire Straightening Machine is suitably checked by our expert quality analyzers on different characteristics to maintain its authenticity.

Specification :

In Thickness of Wire mm

1.5 to 4mm

In Length of Wire to be cut automatically mm

28 to 1000 mm, Length can be increased as per requirement.

Feeding Capacity per Min.

90' feet

Power of Motor H.P

2 HP

Required R.P.M

1440

Approx Weight in Kg. Net / Gross

300 /425

Floor Space required

3' X 8' Feet

Standard Accessories:

  • Electric Motor and Switch.
  • Automatic Cutting Gauge
  • Straightening Bushes and Cutting Knife.

Optional Accessories:

  • Longer Automatic Cutting Gauge.
  • Cuting Knives
  • Additional Straightening Bushes.
  • PLC Based Machines
  • Variable speed machine
  • Pay Off
  • Multi Station Collection systems.

The drawn coil is loaded on the coil stand. The wire feed through rollers and spinner (rotates at high speed) get straightened and passed to cutting area. The straightened wire cut by a cam operator mechanism. The spring operated scaling bar used to maintain the length of the wire during cutting. The length of the cut wire can be adjusted easily on the scaling bar. Cut Wires are collected by a tray kept underneath. This wires are collected form the wire tray stacked on a cut wire stand. For different diameter of wire.
